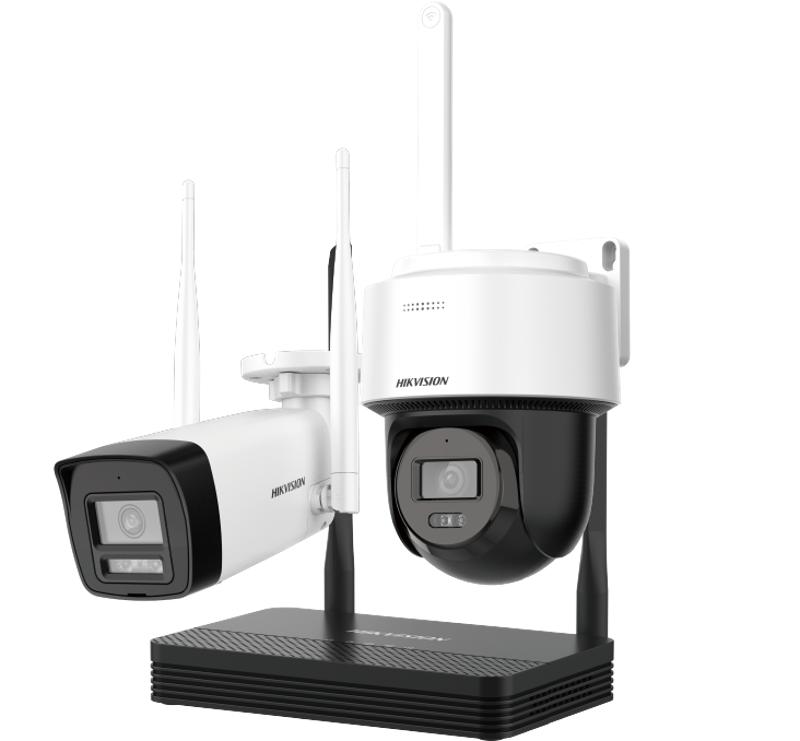

1x4MP Bullet,
1x4MP PT,
Mobile Phone Remote Monitoring,
Quick Wireless Connection,
Accurate Motion Alarm,
Ensure Data Security
Description
| Camera | |
|---|---|
| Camera Case Type | Bullet; Dome |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination |
Bullet: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Dome: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Day & Night | IR cut filter |
| WDR | DWDR |
| Angle Adjustment |
Bullet: Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° Dome: Pan: 0°–345°, Tilt: 0°–80° |
| Protection Level | IP66 |
| Wi-Fi Support | Yes |
| Camera/Lens | |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| Focus | Fixed |
| FOV | H: 94°, V: 49°, D: 114° |
| Camera/IR | |
| IR Range |
Bullet: Up to 30 m Dome: IR: Up to 25 m, White Light: Up to 25 m |
| Camera/Compression Standard | |
| Video Compression | H.265; H.264; MJPEG |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Compression | G.711ulaw / AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw) / 16–64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Yes |
| Camera/Image | |
| Max. Resolution | 4MP |
| Main Stream |
50 Hz: 25 fps (2560×1440, 1920×1080, 1280×720) 60 Hz: 20 fps (2560×1440), 24 fps (1920×1080, 1280×720) |
| Sub-stream |
50 Hz: 25 fps (768×432) 60 Hz: 30 fps (768×432) |
| Image Setting | Saturation, brightness, contrast, sharpness, gain, white balance (adjustable) |
| Day/Night Switch | Auto / Scheduled / Day / Night |
| Camera/Network | |
| Alarm Trigger | Motion (human/vehicle), video tampering, exception |
| Protocols | TCP/IP, DHCP, DNS, HTTP, RTP, RTSP, IPv6, UDP, QoS, UPnP, etc. |
| General Function | Reset, heartbeat, mirror, password, privacy mask, watermark, IP filter |
| Camera/Interface | |
| Communication | 1 × RJ45 10M/100M Ethernet port |
| Reset Button | Yes |
| Camera/General | |
| Power Supply |
Bullet: 12 VDC ±25%, 0.5 A, Max 6 W Dome: 12 VDC ±25%, 0.75 A, Max 9 W |
| Consumption |
Bullet: ≤ 6 W Dome: ≤ 9 W |
| Working Temp |
Bullet: -30°C to 60°C Dome: -10°C to 40°C |
| Humidity | 95% or less (non-condensing) |
| Dimensions |
Bullet: 260.9 × 113.9 × 67.4 mm Dome: Ø124 × 119 mm |
| Weight |
Bullet: 305 g Dome: 600 g |
| NVR/Video and Audio | |
| IP Video Input | 4-ch |
| Bandwidth | 20 Mbps In / 20 Mbps Out |
| NVR/Decoding | |
| Video Resolution | 6MP to QCIF (various) |
| Synchronous Playback | 1-ch |
| NVR/Network | |
| Network Interface | 1 × RJ45 10/100M |
| NVR/Wi-Fi | |
| Frequency Band | 2.4 GHz |
| Antenna | High gain antenna |
| Speed | 150 Mbps |
| Standard | IEEE 802.11b/g/n/ax |
| NVR/Auxiliary Interface | |
| SD Card | 32G/64G/128G/256G/512G |
| NVR/General | |
| Power Supply | 12 VDC |
| Consumption | ≤ 6 W (no HDD, PoE off) |
| Working Temp | -10°C to 55°C |
| Humidity | 10% to 90% |
| Dimensions | 163 × 125 × 26 mm |
| Weight | ≤ 500 g (without HDD) |
| Kit | |
| Accessories | 2× IPC adaptors, 1× NVS adaptor, 1× RJ45 Cat5e Ethernet |
| Certification | CB, CE |
| Weight (with package) | ≤ 2.5 kg |
